R&S NRX Powermeter
Rohde & Schwarz hat den neuen HF-Leistungsmesser mit einem touchscreen-basierten Bedienkonzept ausgestattet, das den Anwender sicher durch die Konfiguration führt. Der NRX besitzt bis zu vier Messkanäle, für die R&S eine große Auswahl an Leistungsmessköpfen zur Verfügung stellt. Erstmals werden Abschluss- sowie Durchgangs-Leistungsmessköpfe in einem Gerät unterstützt. Hochgenaue HF-Leistungsmessung für moderne Applikationen stellt eine Herausforderung dar. Mit dem NRX sind selbst getriggerte und synchronisierte Mehrkanalmessungen mit unterschiedlichsten Leistungsmessköpfen möglich.
Standardmäßig besitzt der NRX zwei robuste Sensoranschlüsse, die sich optional auf vier erweitern lassen. Darüber hinaus können Messköpfe auch über USB oder Ethernet angeschlossen werden. An die Sensoranschlüsse kann der Anwender alle aktuellen Abschlussleistungs-Messköpfe aus dem Portfolio von R&S anschließen. Mit dem NRX-B9 Sensor-Interface-Modul lassen sich auch die Durchgangsleistungs-Tastköpfe (Directional Power Sensors) der NRT-Z-Familie in die Messung mit einbinden, um die Leistung in beiden Übertragungsrichtungen zu ermitteln.
- Intuitive operation with touch screen based GUI
- Supports NRP and NRQ6 power sensors
- Expandable to up to four measurement channels
- Supports all sensor-dependent measurement functions
- Optional high-precision CW and pulse mode reference source module (Sensor check source)
- Optional power reflection measurements with NRT-Zxx sensors
- Straightforward numerical and graphical display of measured values, plus intuitive operation
- Hardware interfaces for remote control and triggering

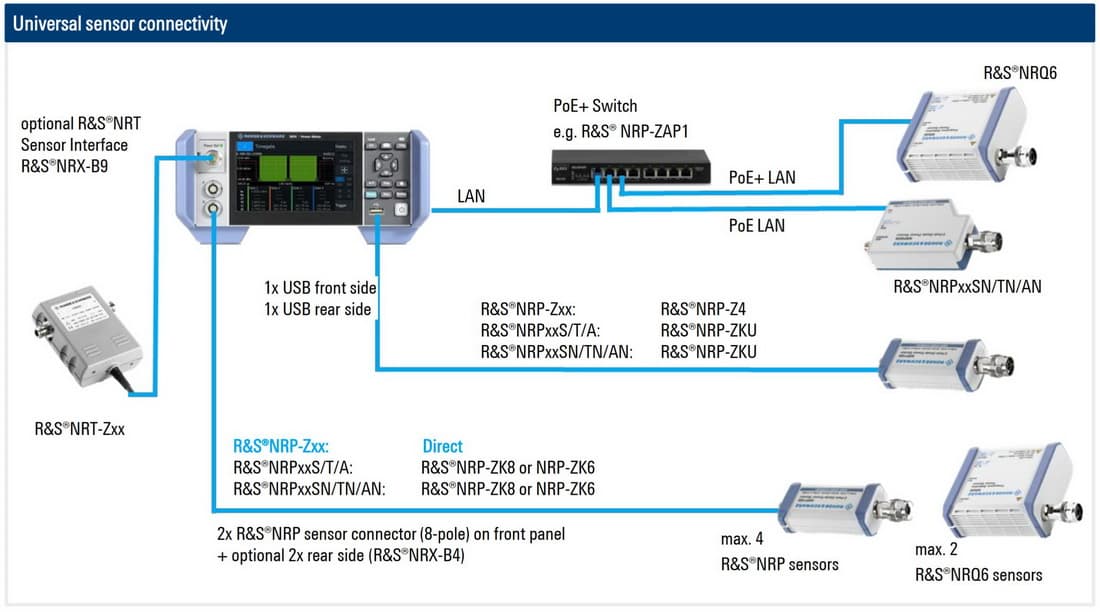

- Flexible sensor interfaces
- Power reflection measurements
- Code emulation of the NRP2
Alle Listenpreise finden Sie unter Geräte & Powersensoren
Modell | Bezeichnung | R&S Bestellnr. | Preis (€) zuzügl. MwSt | Preis (€) inkl. MwSt |
---|---|---|---|---|
NRX | Power Meter (Base unit) | 1424.7005.02 | 4.996,00 € | 5.945,24 € |
NRX-COM4 | NRX Power Meter inkl. NRX-K2 2. Messkanal NRX-K4 3. und 4. Messkanal NRX-B1 Sensor check source, 50 MHz und 1 GHz reference source NRX-B4 3. und 4. Anschluß Geräterückseite | 1424.7005P99 | 10.918,00 € | 12.992,42 € |
Optionen | ||||
NRX-K2 | 2. Messkanal für NRX (unregistrierte Lizenz) | 1424.9208.03 | 3.510,00 € | 4.176,90 € |
NRX-K4 | 3. und 4. Messkanal, benötigt NRX-K2 (unregistrierte Lizenz) | 1424.9308.03 | 2.040,00 € | 2.427,60 € |
NRX-B1 | Sensor check source, 50 MHz and 1 GHz reference source | 1424.7805.02 | 1.051,00 € | 1.250,69 € |
NRX-B4 | 3. and 4. sensor connector for NRX (C, D, 8-pole) | 1424.8901.02 | 552,00 € | 656,88 € |
NRX-B8 | GPIB/IEEE488 interface | 1424.8301.02 | 490,00 € | 583,10 € |
NRX-B9 | removable Interface for one NRT-Z Sensor | 1424.8601.02 | 1.020,00 € | 1.213,80 € |
19"-Rack Einbau | ||||
ZZA-KNA22 | 19" Rack Adapter 2HE (for one NRX / NRT2 power meter and one empty casing) | 177.8184.00 | Auf Anfrage | |
ZZA-KNA24 | 19" Rack Adapter 2HE (for two NRX / NRT2 power meters) | 177.8149.00 | Auf Anfrage | |
Infos zu Gewährleistungsverlängerung und Gerätekalibrierung finden Sie unter "Serviceoptionen" Wir erstellen Ihnen gerne ein detailiertes Angebot | ||||
Preise Stand 2024-04-01 - Preisirrtum vorbehalten - Es gelten die Preise aus unseren Angeboten |
Modell | Bezeichnung | R&S Bestellnr. | Preis (€) zuzügl. MwSt | Preis (€) inkl. MwSt |
---|---|---|---|---|
Software | ||||
NRPV | Virtual Power Meter PC Software | 1417.0009.02 | Auf Anfrage | |
NRPZ-K1 | Option Key, for enabling an NRP-Zxx power sensor for use with NRPV software (each NRP-Zxx power sensor requires its own option key) Power sensors of NRPxS[N], NRPxT[N] and NRPxA[N] are by default enabled for use with NRPV | 1418.9800.03 | Auf Anfrage | |
Leistungsmessköpfe | ||||
Link: Details zu Leistungsmessköpfen | ||||
Level control sensors | ||||
NRP-Z98 | 200 pW to 100 mW, 9 kHz to 6 GHz | 1170.8508.02 | Auf Anfrage | |
NRP-Z28 | 200 pW to 100 mW, 10 MHz to 18 GHz | 1170.8008.02 | Auf Anfrage | |
Breitband Leistungs-Messköpfe | ||||
NRP-Z81 | 1 nW bis 100 mW, 50 MHz bis 18 GHz | 1137.9009.02 | Auf Anfrage | |
NRP-Z85 | 1 nW bis 100 mW, 50 MHz bis 40 GHz, (2,92 mm) | 1411.7501.02 | Auf Anfrage | |
NRP-Z86 | 1 nW bis 100 mW, 50 MHz bis 40 GHz, (2,40 mm) | 1417.0109.40 | Auf Anfrage | |
NRP-Z86 | 1 nW bis 100 mW, 50 MHz bis 44 GHz (2,40 mm) | 1417.0109.44 | Auf Anfrage | |
Mittelwert-Leistungs-Messköpfe | ||||
NRP6A | 100 pW bis 200 mW, 8 kHz bis 6 GHz | 1424.6796.02 | Auf Anfrage | |
NRP6AN | 100 pW bis 200 mW, 8 kHz bis 6 GHz, LAN version | 1424.6809.02 | Auf Anfrage | |
NRP18A | 100 pW bis 200 mW, 8 kHz bis 18 GHz Average Leistungsmesskopf benötigt USB Sensor-Kabel NRP-ZKU oder Messkopfkabel NRP-ZK6 Gerät ist abgekündigt, aktuellen Preis bitte anfragen | 1424.6815.02 | 5.730,00 € | 6.818,70 € |
NRP18AN | 100 pW bis 200 mW, 8 kHz bis 18 GHz, LAN version | 1424.6821.02 | Auf Anfrage | |
Zweipfad-Dioden Leistungs-Messköpfe | ||||
NRP-Z211 | 10 MHz bis 8 GHz, 100 mW, 2 Pfade | 1417.0409.02 | 3.120,00 € | 3.712,80 € |
NRP-Z211 | 10 MHz bis 8 GHz, 1 nW bis 100mW, N(m) mit verkürztem Kabel 0,4m>/strong> für universelle Anwendungen | 1417.0409.04 | 3.120,00 € | 3.712,80 € |
NRP-Z221 | 10 MHz bis 18 GHz, 100 mW, 2 Pfade | 1417.0309.02 | 4.050,00 € | 4.819,50 € |
Dreipfad-Dioden Leistungs-Messköpfe | ||||
NRP8S | 100 pW bis 200 mW, 10 MHz bis 8 GHz | 1419.0006.02 | 4.481,00 € | 5.332,39 € |
NRP8SN | 100 pW bis 200 mW, 10 MHz bis 8 GHz, LAN version | 1419.0012.02 | Auf Anfrage | |
NRP18S | 100 pW bis 200 mW, 10 MHz bis 18 GHz | 1419.0029.02 | 5.367,00 € | 6.386,73 € |
NRP18SN | 100 pW bis 200 mW, 10 MHz bis 18 GHz, LAN version | 1419.0035.02 | Auf Anfrage | |
NRP33S | 100 pW bis 200 mW, 10 MHz bis 33 GHz 3-Pfad Dioden Leistungsmesskopf | 1419.0064.02 | Auf Anfrage | |
NRP33SN | 100 pW bis 200 mW, 10 MHz bis 33 GHz, LAN version | 1419.0070.02 | Auf Anfrage | |
NRP33SN-V | 100 pW bis 200 mW, 10 MHz bis 33 GHz, LAN version | 1419.0129.02 | Auf Anfrage | |
NRP40S | 100 pW bis 200 mW, 50 MHz bis 40 GHz | 1419.0041.02 | Auf Anfrage | |
NRP40SN | 100 pW bis 100 mW, 50 MHz bis 40 GHz, LAN version | 1419.0058.02 | Auf Anfrage | |
NRP50S | 100 pW bis 200 mW, 50 MHz bis 50 GHz | 1419.0087.02 | Auf Anfrage | |
NRP50SN | 100 pW bis 100 mW, 50 MHz bis 50 GHz, LAN version | 1419.0093.02 | Auf Anfrage | |
High-Power Dreipfad-Dioden Leistungs-Messköpfe | ||||
NRP18S-10 | 1 nW to 2 W, 10 MHz to 18 GHz | 1424.6721.02 | Auf Anfrage | |
NRP18S-20 | 10 nW to 15 W, 10 MHz to 18 GHz | 1424.6738.02 | Auf Anfrage | |
NRP18S-25 | 30 nW to 30 W, 10 MHz to 18 GHz N (m) benötigt USB Sensor-Kabel NRP-ZKU oder Messkopfkabel NRP-ZK6 Gerät ist abgekündigt zum 01.04.2024 | 1424.6744.02 | 6.290,00 € | 7.485,10 € |
Thermische Leistungs-Messköpfe | ||||
NRP18T | 300 nW bis 100 mW, DC bis 18 GHz | 1424.6115.02 | 3.657,00 € | 4.351,83 € |
NRP18TN | 300 nW bis 100 mW, DC bis 18 GHz, LAN version | 1424.6121.02 | Auf Anfrage | |
NRP33T | 300 nW bis 100 mW, DC bis 33 GHz | 1424.6138.02 | Auf Anfrage | |
NRP33TN | 300 nW bis 100 mW, DC bis 33 GHz, LAN version | 1424.6144.02 | Auf Anfrage | |
NRP40T | 300 nW bis 100 mW, DC bis 40 GHz | 1424.6150.02 | Auf Anfrage | |
NRP40TN | 300 nW bis 100 mW, DC bis 40 GHz, LAN version | 1424.6167.02 | Auf Anfrage | |
NRP50T | 300 nW bis 100 mW, DC bis 50 GHz | 1424.6173.02 | Auf Anfrage | |
NRP50TN | 300 nW bis 100 mW, DC bis 50 GHz, LAN version | 1424.6180.02 | Auf Anfrage | |
NRP67T | 300 nW bis 100 mW, DC bis 67 GHz | 1424.6196.02 | Auf Anfrage | |
NRP67TN | 300 nW bis 100 mW, DC bis 67 GHz, LAN version | 1424.6209.02 | Auf Anfrage | |
NRP110T | 300 nW bis 100 mW, DC bis 110 GHz | 1424.6215.02 | Auf Anfrage | |
NRP18P | Puls-Leistungsmesskopf 50MHz bis 18GHz; 1nW bis 100mW, N (m) benötigt USB Sensor-Kabel NRP-ZKU oder Messkopfkabel NRP-ZK6 | 1444.1190.02 | 9.044,00 € | 10.762,36 € |
NRP-ZKC | USB Leistungsmesskopfkabel L=0,75m für NRPxxS/T/A/SN/TN/AN Messkopfbetrieb Stromversorgung über USB, Stecker: M12(sensorseitig) - USB-C | 1425.2442.02 | 227,00 € | 270,13 € |
NRP-ZKC | USB Leistungsmesskopfkabel L=1,5m für NRPxxS/T/A/SN/TN/AN Messkopfbetrieb Stromversorgung über USB, Stecker: M12(sensorseitig) - USB-C | 1425.2442.03 | 248,00 € | 295,12 € |
NRP-ZKC | USB Leistungsmesskopfkabel L=3,0m für NRPxxS/T/A/SN/TN/AN Messkopfbetrieb Stromversorgung über USB, Stecker: M12(sensorseitig) - USB-C | 1425.2442.04 | 289,00 € | 343,91 € |
Infos zu Gewährleistungsverlängerung und Gerätekalibrierung finden Sie unter "Serviceoptionen" Wir erstellen Ihnen gerne ein detailiertes Angebot | ||||
Preise Stand 2024-04-01 - Preisirrtum vorbehalten - Es gelten die Preise aus unseren Angeboten |
Manuale | ||||
NRX | Powermeter -Getting-Started-Manual | Manual pdf 4 MB |
||
NRX | Powermeter -Manual | Manual pdf 30 MB |
||
Fact-Sheets | ||||
NRX | Power Meter | Fact-Sheet pdf 1 MB |
||
Applikationen | ||||
NRX | NRX Remote Emulation Application- this makes it possible to control the instrument by commands other than the built-in native SCPI commands. This feature allows the user to replace power meters, e.g. from other manufacturers, with the R&S NRX power meter without having to change the remote control code. | pdf download | ||
Firmware | ||||
NRX | Firmware | ext. Link R&S Website: NRX Firmware Download |
||
Gerätetreiber | ||||
NRX | Gerätetreiber und Anwendungsbeispiele: z.B. für LabView, IVI.Net, LabWindows/CVI, VXI, VBA, C#, C++, etc. | ext. Link R&S Website: NRX Gerätetreiber Download |
||
Software | ||||
dB-Calculator R&S App | kostenfreie App für Android, iOS, Windows phone: dBm-Rechner, db-Konverter, VSWR-Converter | ext. Link R&S Website: Info/Download |
Modell | Bezeichnung | R&S Bestellnr. | für Gerätetyp | für Geräte Art.-Nr. | Preis (€) zuzügl. MwSt | Preis (€) inkl. MwSt |
---|---|---|---|---|---|---|
Preise Stand 2023-03-01 - Preisirrtum vorbehalten - Kalibrierpreise & weitere Service-Optionen bitte immer anfragen. Wir erstellen Ihnen gerne ein detailiertes Angebot Es gelten die Preise aus unseren Angeboten | ||||||
WE1NRX | Extension of the 3 year standard product warranty to 4 years for NRX: - All repairs and all necessary R&S®Manufacturer-Calibrations in case of repair | 3598.0750S02 | NRX | 1424.7005.02 | 203,00 € | 241,57 € |
WE2NRX | Extension of the 3 year standard product warranty to 5 years for NRX: - All repairs and all necessary R&S®Manufacturer-Calibrations in case of repair | 3598.0750S03 | NRX | 1424.7005.02 | 386,00 € | 459,34 € |
CW1NRX | Extension of the 3 year standard product warranty to 4 years and Calibration Coverage for NRX for 4 years: - 1 scheduled R&S®Manufacturer- Calibration according to the 24 month recommended calibration interval - All repairs and all necessary R&S®Manufacturer-Calibrations after repair or option upgrade | 3598.0750S06 | NRX | 1424.7005.02 | 397,00 € | 472,43 € |
CW2NRX | Extension of the 3 year standard product warranty to 5 years and Calibration Coverage for NRX for 5 years: - 2 scheduled R&S®Manufacturer- Calibrations according to the 24 month recommended calibration interval - All repairs and all necessary R&S®Manufacturer-Calibrations after repair or option upgrade | 3598.0750S07 | NRX | 1424.7005.02 | 769,00 € | 915,11 € |
AW1NRX | Extension of the 3 year standard product warranty to 4 years and Accredited Calibration Coverage for NRX for 4 years: - 1 scheduled R&S®Accredited- Calibration according to the 24 month recommended calibration interval - All repairs and all necessary R&S®Accredited-Calibrations after repair or option upgrade | 3598.0750S14 | NRX | 1424.7005.02 | 473,00 € | 562,87 € |
AW2NRX | Extension of the 3 year standard product warranty to 5 years and Accredited Calibration Coverage for NRX for 5 years: - 2 scheduled R&S®Accredited- Calibrations according to the 24 month recommended calibration interval - All repairs and all necessary R&S®Accredited-Calibrations after repair or option upgrade | 3598.0750S15 | NRX | 1424.7005.02 | 920,00 € | 1.094,80 € |
ACANRX | R&S®Accredited Calibration for NRX: - Akkreditiertes Kalibrierzertifikat - Akkreditiert nach ISO 17025, ISO 9001 zertifiziert, rückführbar auf nationale/ internationale Standards - Verifizierung vollständiger Produkt- spezifikation nach Verfahren wie bei der Herstellung, inklusive Angabe von Messunsicherheiten/Guardbanding | 3598.0750.03 | NRX | 441,00 € | 524,79 € |
-
Alle Listenpreise finden Sie unter Geräte & Powersensoren
- Geräte
-
Modell Bezeichnung R&S Bestellnr. Preis (€)
zuzügl. MwStPreis (€)
inkl. MwStNRX Power Meter (Base unit) 1424.7005.02 4.996,00 € 5.945,24 € NRX-COM4 NRX Power Meter inkl.
NRX-K2 2. Messkanal
NRX-K4 3. und 4. Messkanal
NRX-B1 Sensor check source, 50 MHz und 1 GHz reference source
NRX-B4 3. und 4. Anschluß Geräterückseite1424.7005P99 10.918,00 € 12.992,42 € Optionen NRX-K2 2. Messkanal für NRX (unregistrierte Lizenz) 1424.9208.03 3.510,00 € 4.176,90 € NRX-K4 3. und 4. Messkanal, benötigt NRX-K2 (unregistrierte Lizenz) 1424.9308.03 2.040,00 € 2.427,60 € NRX-B1 Sensor check source, 50 MHz and 1 GHz reference source 1424.7805.02 1.051,00 € 1.250,69 € NRX-B4 3. and 4. sensor connector for NRX (C, D, 8-pole) 1424.8901.02 552,00 € 656,88 € NRX-B8 GPIB/IEEE488 interface 1424.8301.02 490,00 € 583,10 € NRX-B9 removable Interface for one NRT-Z Sensor 1424.8601.02 1.020,00 € 1.213,80 € 19"-Rack Einbau ZZA-KNA22 19" Rack Adapter 2HE (for one NRX / NRT2 power meter and one empty casing) 177.8184.00 Auf Anfrage ZZA-KNA24 19" Rack Adapter 2HE (for two NRX / NRT2 power meters) 177.8149.00 Auf Anfrage Infos zu Gewährleistungsverlängerung und Gerätekalibrierung
finden Sie unter "Serviceoptionen"
Wir erstellen Ihnen gerne ein detailiertes AngebotPreise Stand 2024-04-01 - Preisirrtum vorbehalten -
Es gelten die Preise aus unseren Angeboten - Power Sensoren
-
Modell Bezeichnung R&S Bestellnr. Preis (€)
zuzügl. MwStPreis (€)
inkl. MwStSoftware NRPV Virtual Power Meter PC Software 1417.0009.02 Auf Anfrage NRPZ-K1 Option Key, for enabling an NRP-Zxx power sensor for use with NRPV software
(each NRP-Zxx power sensor requires its own option key)
Power sensors of NRPxS[N], NRPxT[N] and NRPxA[N] are by default enabled for use with NRPV1418.9800.03 Auf Anfrage Leistungsmessköpfe Link: Details zu Leistungsmessköpfen Level control sensors NRP-Z98 200 pW to 100 mW, 9 kHz to 6 GHz 1170.8508.02 Auf Anfrage NRP-Z28 200 pW to 100 mW, 10 MHz to 18 GHz 1170.8008.02 Auf Anfrage Breitband Leistungs-Messköpfe NRP-Z81 1 nW bis 100 mW, 50 MHz bis 18 GHz 1137.9009.02 Auf Anfrage NRP-Z85 1 nW bis 100 mW, 50 MHz bis 40 GHz, (2,92 mm) 1411.7501.02 Auf Anfrage NRP-Z86 1 nW bis 100 mW, 50 MHz bis 40 GHz, (2,40 mm) 1417.0109.40 Auf Anfrage NRP-Z86 1 nW bis 100 mW, 50 MHz bis 44 GHz (2,40 mm) 1417.0109.44 Auf Anfrage Mittelwert-Leistungs-Messköpfe NRP6A 100 pW bis 200 mW, 8 kHz bis 6 GHz 1424.6796.02 Auf Anfrage NRP6AN 100 pW bis 200 mW, 8 kHz bis 6 GHz, LAN version 1424.6809.02 Auf Anfrage NRP18A 100 pW bis 200 mW, 8 kHz bis 18 GHz Average Leistungsmesskopf
benötigt USB Sensor-Kabel NRP-ZKU oder Messkopfkabel NRP-ZK6
Gerät ist abgekündigt, aktuellen Preis bitte anfragen1424.6815.02 5.730,00 € 6.818,70 € NRP18AN 100 pW bis 200 mW, 8 kHz bis 18 GHz, LAN version 1424.6821.02 Auf Anfrage Zweipfad-Dioden Leistungs-Messköpfe NRP-Z211 10 MHz bis 8 GHz, 100 mW, 2 Pfade 1417.0409.02 3.120,00 € 3.712,80 € NRP-Z211 10 MHz bis 8 GHz, 1 nW bis 100mW, N(m) mit verkürztem Kabel 0,4m>/strong> für universelle Anwendungen 1417.0409.04 3.120,00 € 3.712,80 € NRP-Z221 10 MHz bis 18 GHz, 100 mW, 2 Pfade 1417.0309.02 4.050,00 € 4.819,50 € Dreipfad-Dioden Leistungs-Messköpfe NRP8S 100 pW bis 200 mW, 10 MHz bis 8 GHz 1419.0006.02 4.481,00 € 5.332,39 € NRP8SN 100 pW bis 200 mW, 10 MHz bis 8 GHz, LAN version 1419.0012.02 Auf Anfrage NRP18S 100 pW bis 200 mW, 10 MHz bis 18 GHz 1419.0029.02 5.367,00 € 6.386,73 € NRP18SN 100 pW bis 200 mW, 10 MHz bis 18 GHz, LAN version 1419.0035.02 Auf Anfrage NRP33S 100 pW bis 200 mW, 10 MHz bis 33 GHz 3-Pfad Dioden Leistungsmesskopf 1419.0064.02 Auf Anfrage NRP33SN 100 pW bis 200 mW, 10 MHz bis 33 GHz, LAN version 1419.0070.02 Auf Anfrage NRP33SN-V 100 pW bis 200 mW, 10 MHz bis 33 GHz, LAN version 1419.0129.02 Auf Anfrage NRP40S 100 pW bis 200 mW, 50 MHz bis 40 GHz 1419.0041.02 Auf Anfrage NRP40SN 100 pW bis 100 mW, 50 MHz bis 40 GHz, LAN version 1419.0058.02 Auf Anfrage NRP50S 100 pW bis 200 mW, 50 MHz bis 50 GHz 1419.0087.02 Auf Anfrage NRP50SN 100 pW bis 100 mW, 50 MHz bis 50 GHz, LAN version 1419.0093.02 Auf Anfrage High-Power Dreipfad-Dioden Leistungs-Messköpfe NRP18S-10 1 nW to 2 W, 10 MHz to 18 GHz 1424.6721.02 Auf Anfrage NRP18S-20 10 nW to 15 W, 10 MHz to 18 GHz 1424.6738.02 Auf Anfrage NRP18S-25 30 nW to 30 W, 10 MHz to 18 GHz N (m)
benötigt USB Sensor-Kabel NRP-ZKU oder Messkopfkabel NRP-ZK6
Gerät ist abgekündigt zum 01.04.20241424.6744.02 6.290,00 € 7.485,10 € Thermische Leistungs-Messköpfe NRP18T 300 nW bis 100 mW, DC bis 18 GHz 1424.6115.02 3.657,00 € 4.351,83 € NRP18TN 300 nW bis 100 mW, DC bis 18 GHz, LAN version 1424.6121.02 Auf Anfrage NRP33T 300 nW bis 100 mW, DC bis 33 GHz 1424.6138.02 Auf Anfrage NRP33TN 300 nW bis 100 mW, DC bis 33 GHz, LAN version 1424.6144.02 Auf Anfrage NRP40T 300 nW bis 100 mW, DC bis 40 GHz 1424.6150.02 Auf Anfrage NRP40TN 300 nW bis 100 mW, DC bis 40 GHz, LAN version 1424.6167.02 Auf Anfrage NRP50T 300 nW bis 100 mW, DC bis 50 GHz 1424.6173.02 Auf Anfrage NRP50TN 300 nW bis 100 mW, DC bis 50 GHz, LAN version 1424.6180.02 Auf Anfrage NRP67T 300 nW bis 100 mW, DC bis 67 GHz 1424.6196.02 Auf Anfrage NRP67TN 300 nW bis 100 mW, DC bis 67 GHz, LAN version 1424.6209.02 Auf Anfrage NRP110T 300 nW bis 100 mW, DC bis 110 GHz 1424.6215.02 Auf Anfrage NRP18P Puls-Leistungsmesskopf 50MHz bis 18GHz; 1nW bis 100mW, N (m)
benötigt USB Sensor-Kabel NRP-ZKU oder Messkopfkabel NRP-ZK61444.1190.02 9.044,00 € 10.762,36 € NRP-ZKC USB Leistungsmesskopfkabel L=0,75m für NRPxxS/T/A/SN/TN/AN Messkopfbetrieb
Stromversorgung über USB, Stecker: M12(sensorseitig) - USB-C1425.2442.02 227,00 € 270,13 € NRP-ZKC USB Leistungsmesskopfkabel L=1,5m für NRPxxS/T/A/SN/TN/AN Messkopfbetrieb
Stromversorgung über USB, Stecker: M12(sensorseitig) - USB-C1425.2442.03 248,00 € 295,12 € NRP-ZKC USB Leistungsmesskopfkabel L=3,0m für NRPxxS/T/A/SN/TN/AN Messkopfbetrieb
Stromversorgung über USB, Stecker: M12(sensorseitig) - USB-C1425.2442.04 289,00 € 343,91 € Infos zu Gewährleistungsverlängerung und Gerätekalibrierung
finden Sie unter "Serviceoptionen"
Wir erstellen Ihnen gerne ein detailiertes AngebotPreise Stand 2024-04-01 - Preisirrtum vorbehalten -
Es gelten die Preise aus unseren Angeboten - Download
-
Manuale NRX Powermeter -Getting-Started-Manual Manual
pdf 4 MBNRX Powermeter -Manual Manual
pdf 30 MBFact-Sheets NRX Power Meter Fact-Sheet
pdf 1 MBApplikationen NRX NRX Remote Emulation Application- this makes it possible to control the instrument by commands other than the built-in native SCPI commands. This feature allows the user to replace power meters, e.g. from other manufacturers, with the R&S NRX power meter without having to change the remote control code. pdf download Firmware NRX Firmware ext. Link R&S Website:
NRX Firmware DownloadGerätetreiber NRX Gerätetreiber und Anwendungsbeispiele: z.B. für LabView, IVI.Net, LabWindows/CVI, VXI, VBA, C#, C++, etc. ext. Link R&S Website:
NRX Gerätetreiber DownloadSoftware dB-Calculator
R&S Appkostenfreie App für Android, iOS, Windows phone:
dBm-Rechner, db-Konverter, VSWR-Converterext. Link R&S Website:
Info/Download - Serviceoptionen
-
Modell Bezeichnung R&S Bestellnr. für Gerätetyp für Geräte Art.-Nr. Preis (€)
zuzügl. MwStPreis (€)
inkl. MwStPreise Stand 2023-03-01 - Preisirrtum vorbehalten -
Kalibrierpreise & weitere Service-Optionen bitte
immer anfragen. Wir erstellen Ihnen gerne ein
detailiertes Angebot
Es gelten die Preise aus unseren AngebotenWE1NRX Extension of the 3 year standard
product warranty to 4 years
for NRX:
- All repairs and all necessary
R&S®Manufacturer-Calibrations
in case of repair3598.0750S02 NRX 1424.7005.02 203,00 € 241,57 € WE2NRX Extension of the 3 year standard
product warranty to 5 years
for NRX:
- All repairs and all necessary
R&S®Manufacturer-Calibrations
in case of repair3598.0750S03 NRX 1424.7005.02 386,00 € 459,34 € CW1NRX Extension of the 3 year standard
product warranty to 4 years
and Calibration Coverage
for NRX
for 4 years:
- 1 scheduled R&S®Manufacturer-
Calibration according to the 24 month
recommended calibration interval
- All repairs and all necessary
R&S®Manufacturer-Calibrations
after repair or option upgrade3598.0750S06 NRX 1424.7005.02 397,00 € 472,43 € CW2NRX Extension of the 3 year standard
product warranty to 5 years
and Calibration Coverage
for NRX
for 5 years:
- 2 scheduled R&S®Manufacturer-
Calibrations according to the 24 month
recommended calibration interval
- All repairs and all necessary
R&S®Manufacturer-Calibrations
after repair or option upgrade3598.0750S07 NRX 1424.7005.02 769,00 € 915,11 € AW1NRX Extension of the 3 year standard
product warranty to 4 years
and Accredited Calibration Coverage
for NRX
for 4 years:
- 1 scheduled R&S®Accredited-
Calibration according to the 24 month
recommended calibration interval
- All repairs and all necessary
R&S®Accredited-Calibrations
after repair or option upgrade3598.0750S14 NRX 1424.7005.02 473,00 € 562,87 € AW2NRX Extension of the 3 year standard
product warranty to 5 years
and Accredited Calibration Coverage
for NRX
for 5 years:
- 2 scheduled R&S®Accredited-
Calibrations according to the 24 month
recommended calibration interval
- All repairs and all necessary
R&S®Accredited-Calibrations
after repair or option upgrade3598.0750S15 NRX 1424.7005.02 920,00 € 1.094,80 € ACANRX R&S®Accredited Calibration for
NRX:
- Akkreditiertes Kalibrierzertifikat
- Akkreditiert nach ISO 17025, ISO 9001
zertifiziert, rückführbar auf
nationale/
internationale Standards
- Verifizierung vollständiger Produkt-
spezifikation nach Verfahren wie bei
der Herstellung, inklusive Angabe von
Messunsicherheiten/Guardbanding
3598.0750.03 NRX 441,00 € 524,79 €
Bedienung über integrierten Touchscreen
Der Anwender bedient das Gerät über den integrierten hochauflösenden 5-Zoll-Touchscreen. Die Konfiguration von Messungen erfolgt dabei über große Schaltflächen. Das System unterstützt hier mit einem logischen Abgleich und macht im Zweifelsfall auf Konflikte aufmerksam. Bei Bedarf kann das Gerät auch über die Tasten des Gerätes bedient werden.
Pulse Analysis
In the continuous average, burst average, timeslot and time gate average measurement modes, up to four numerical results can be displayed in parallel. The ratio, SWR, return loss and reflection coefficient can be calculated from two measurement channels using predefined computation functions and displayed in addition to the absolute and relative power level. Trace measurements and statistical measurements are presented in graphical windows.
NRP-Power Sensors
All NRP-Z8x wideband power sensors allow automatic pulse analysis. Up to 12 of 18 user-selected pulse parameters can be displayed in addition to the measurement trace. The statistical amplitude distribution of the envelope power is shown as CCDF, CDF or PDF in a statistics window.
Sensor check source
Mit dem optional erhältlichen Modul R&S NRX-B1 Sensor Check Source können Anwender Sensoren für eine anstehende Messung prüfen.
Das hochpräzise 50 MHz/ 1 GHz Referenz Generatormodul erzeugt CW sowie gepulste Signale mit steilen Flanken.
NRP – Power Sensors Family
Diese Powersensoren können zusammen mit NRX Power Meter, NRP2 Power Meter oder als eigenständige Messgeräte eingesetzt werden. Die Steuerung erfolgt via Webbrowser Interface über USB oder LAN oder mittels NRPV Software. Die NRP-Power-Sensoren lassen sich auch direkt mit vielen Rohde & Schwarz Messgeräten wie Spektrumanalysatoren, Signalgeneratoren oder Netzwerkanalysatoren verwenden. Die NRP-Power Sensoren eignen sich ideal für den Einsatz in Produktion, Forschung, Entwicklung und ebenso für Kalibrierlabore oder Installations- und Wartungsaufgaben.
Alle Details finden Sie
im Datenblatt oben
Vertrieb und Distribution
Die Allice Messtechnik GmbH mit Sitz in Frankfurt ist seit 20 Jahren Rohde & Schwarz Service- und Vertriebspartner.
Bei Allice finden Sie sowohl technischen Support als auch Service- und Kalibrier-Dienstleistungen für R&S Messgeräte.
Lassen Sie sich ein Angebot zu tagesaktuellen Konditionen erstellen – oder rufen Sie einfach einen Messtechnik-Spezialisten an.
